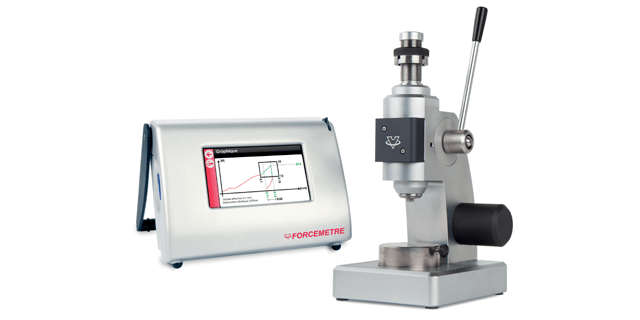

FORCEMETRE 4.0

Complete electronic axial force-displacement measuring device.

  • Art. N° 17.01993
  • Art. N° 7.00224 (Dust protection cover)

PRODUCT DESCRIPTION

Characterization and control of driving in operations and spring elements through combined measurement of force and displacement. Linkix ® compatible.

TECHNICAL CHARACTERISTICS

  • Possibility to create programs and work sequences
  • Adjustable min/max limits for force and displacement
  • Gear free lever with force feedback
  • Mechanical clutch system to avoid overloading
  • Graphical tests results visualization
  • Spindle compatible with Horia Ø4mm and Ø3mm cleats
  • Base compatible with Horia Ø4mm cleats
  • Linkix ® compatible display
  • Force measurement range: 50N & 100 N
  • Force measurement precision: +/- 0.5% FS
  • Distance measurement precision: +/- 0.003mm
  • Data transfer via USB cable
  • Power supply: 100 / 240 VAC, 24 VDC

APPLICATION EXAMPLE

Stones driving, control of stone holding, characterization of the spring force in compression, characterization of the driving effort as a function of the displacement, visualization of force-displacement graphs

DIMENSIONS

  • Dimensions : 205 x 100 x 120 mm
  • Weight : 2.00 kg
